Temperature conversion: To switch between Fahrenheit and Celsius, refer to Message center in the Instrument Cluster chapter.

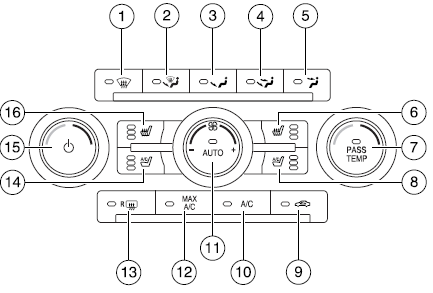

1.: Distributes outside air through the windshield defroster vents and de-mister vents. Can be used to clear the windshield of fog and thin ice. The system will automatically provide outside air to reduce window fogging. Press this button again to return to the previous air flow selection.

To return to full automatic control, press AUTO.

2. : Distributes air through the windshield defroster vents, de-mister vents, floor vents and rear seat floor vents. The system will automatically provide outside air to reduce window fogging.

To return to full automatic control, press AUTO.

3. : Distributes air through the floor vents, rear seat floor vents.

To return to full automatic control, press AUTO.

4. : Distributes air through the instrument panel vents, floor vents, rear seat floor vents and de-mister vents.

To return to full automatic control, press AUTO.

5. : Distributes air through the instrument panel vents.

To return to full automatic control, press AUTO.

6. Passenger heated seat: Press to control the passenger heated seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.

7. PASS TEMP: Press to activate separate passenger temperature control and turn the dial to increase/decrease the airflow temperature on the passenger side of the vehicle.

8. Passenger cooled seat: Press to control the passenger cooled seat. Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.

9. Recirculated air: Press to activate/deactivate air recirculation in the vehicle. Recirculated air may reduce the amount of time needed to cool down the interior of the vehicle and may also help reduce undesired odors from reaching the interior of the vehicle.

Recirculated air engages automatically when MAX A/C is selected or can be engaged manually in any airflow mode except (defrost).

When the ignition switch is turned off and back on, the climate system will return to the recirculated air mode only if the A/C button LED is illuminated and the air distribution selection is either (panel) or (panel/floor).

10. A/C: Press to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance and efficiency. A/C engages automatically in MAX A/C, (defrost) and (floor/defrost).

11. AUTO / + – (Fan Speed Control): Press to engage automatic temperature control. Select the desired temperature using the temperature control. The system will automatically determine fan speed, airflow location, A/C on or off, and outside or recirculated air, to heat or cool the vehicle to reach the desired temperature.

For manual fan speed control, turn the knob to adjust fan speed.

To return to full automatic control, press AUTO.

12. MAX A/C: Distributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient. Recirculated air may also help reduce undesirable odors from entering the vehicle. Press the MAX A/C button again for normal A/C operation.

13. Rear defroster/Heated mirrors: Press to activate/deactivate the rear window defroster and heated outside mirrors. Refer to Rear window defroster later in this chapter and Heated outside mirrors in the Driver Controls chapter for more information.

14. Driver cooled seat: Press to control the driver cooled seat.

Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.

15. Power/Cabin temperature: Press to activate/deactivate the climate control system. When the system is off, outside air is prevented from entering the vehicle.

Turn the dial to increase/decrease the airflow temperature on the driver side of the vehicle. This control also adjusts the passenger side temperature when PASS TEMP is off.

16. Driver heated seat: Press to control the driver heated seat.

Refer to Heated and cooled seats in the Seating and Safety Restraints chapter for more information.
